Cabinets

The corona discharge cabinets are designed for larger commercial applications. Providing an ozone output range from 28 to 170 grams per hour, these industrial-strength ozone generators deliver tremendous value, performance, and output capability in the most demanding conditions.

Features

  • Automated operation
  • Continuous sanitation
  • Easy installation
  • Minimal maintenance
  • Designed for ease of service
  • Computer grade power supply
  • Remote 4-20 mA control
  • Air-cooled stainless steel ozone reaction chambers

Applications

  • Commercial swimming pools
  • Small community potable water systems
  • Wastewater
  • Aquatic life support
  • Bottling plants
  • Food processing
  • Beverage processing

Products

CD4000HO


The CD4000HO cabinet is a turnkey, corona discharge ozone system featuring high output reaction chambers. Designed to deliver high concentrations of ozone, the CD4000HO delivers high performance for large commercial applications. WQA NSF STD 50 registered.


Dimensions: 42.0″ h x 28.5″ w x 14″ d, 149 lbs.
Ozone Output: 40 grams/hour @ 28 SCFH with oxygen

CD4000P


The CD4000P cabinet, from ClearWater Tech, is a turnkey, ozone system designed with four pressurized reaction chambers. Delivering high output ozone, these systems are ideal for larger water treatment requirements. WQA NSF STD 50 registered.


Applications include aquatic life support, commercial swimming pools, beverage and food processing, bottling plants, wastewater, and small community potable water systems.


Dimensions: 42.0″ h x 28.5″ w x 14″ d, 149 lbs.
Ozone Output: 56 grams/hour @ 24 SCFH with oxygen

CD6000HO


The CD6000HO cabinet from ClearWater Tech is a turnkey, corona discharge ozone system. Housed in a stainless steel cabinet and made with high-quality materials and components, this system is designed with an adjustable ozone output of 60 grams/hour on oxygen. WQA NSF STD 50 registered.

Dimensions: 52.0″ h x 40.5″ w x 18″ d, 264 lbs.
Ozone Output: 60 grams/hour @ 42 SCFH with oxygen

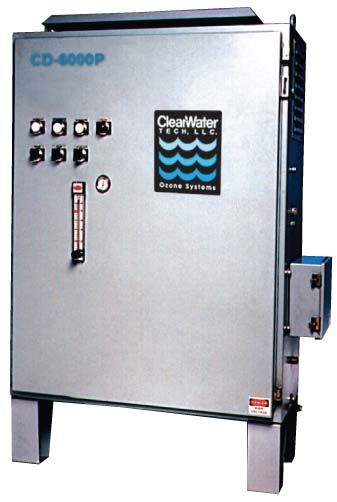

CD6000P


Engineered and manufactured with six pressurized reaction chambers, the CD6000P cabinet from ClearWater Tech delivers an ozone output of 84 grams per hour on oxygen. Durable, efficient, and built for larger sanitation requirements. WQA NSF STD 50 registered.


Applications include aquatic life support, commercial swimming pools, beverage and food processing, bottling plants, waste water, and small community potable water systems.


Dimensions: 52.0″ h x 40.5″ w x 18″ d, 264 lbs.
Ozone Output: 84 grams/hour @ 36 SCFH with oxygen

CD8000HO


The CD8000HO cabinet is a turnkey, corona discharge ozone system housed in a stainless steel cabinet and made with high-quality materials and components. Engineered and manufactured for demanding jobs that have higher water treatment requirements. WQA NSF STD 50 registered.


Applications include aquatic life support, commercial swimming pools, beverage and food processing, bottling plants, waste water, and small community potable water systems.

Dimensions: 52.0″ h x 40.5″ w x 18″ d, 314 lbs.
Ozone Output: 80 grams/hour @ 56 SCFH with oxygen

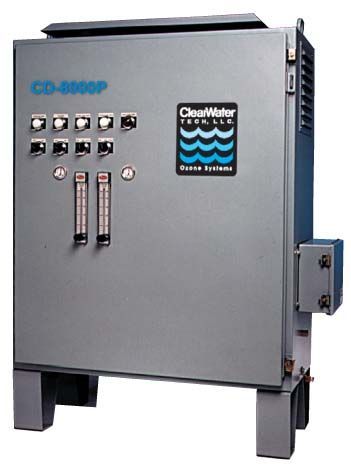

CD8000P


The CD8000P cabinet from ClearWater Tech delivers an ozone ouput of 112 grams per hour on oxygen. It is engineered and manufactured with eight pressurized reaction chambers. Built for larger water treatment requirements. WQA NSF STD 50 registered.


Applications include aquatic life support, commercial swimming pools, beverage and food processing, bottling plants, waste water and small community potable water systems.


Dimensions: 52.0″ h x 40.5″ w x 18″ d, 314 lbs.
Ozone Output: 112 grams/hour @ 48 SCFH with oxygen

CD12000HO


Designed specifically for large commercial applications, the CD12000HO cabinet is a turnkey, corona discharge ozone system. Built with higher water treatment requirements, the CD12000HO has an ozone output of 120 grams per hour on oxygen, WQA NSF STD 50 registered.


Applications include aquatic life support, commercial swimming pools, beverage and food processing, bottling plants, waste water, and small community potable water systems.

Dimensions: 70.0″ h x 40.5″ w x 18″ d, 421 lbs.
Ozone Output: 120 grams/hour @ 84 SCFH with oxygen

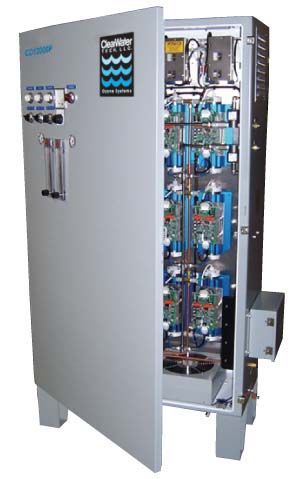

CD12000P


The CD12000P system features 12 pressurized reaction chambers and is built for larger commercial applications that require high concentrations of ozone output. Designed with stainless steel construction, these generators are built for efficiency, durability, and lasting performance. WQA NSF STD 50 registered.


Applications include aquatic life support, commercial swimming pools, beverage and food processing, bottling plants, wastewater, and small community potable water systems.


Dimensions: 70.0″ h x 40.5″ w x 18″ d, 421 lbs.
Ozone Output: 170 grams/hour @ 72 SCFH with oxygen
