Micro Series

  • Compact
  • Main power indicator
  • Low power consumption
  • No air preparation required
  • Air-cooled
  • Optional – interlock relay


The Microzone Series uses corona discharge (CD) technology to provide superior ozone performance in a compact size. A plug-and-play product line that delivers tremendous value with minimal complexity.

Features

Applications

Benefits

  • Residential spas
  • Ornamental water features
  • Small aquariums
  • Freshwater holding tanks
  • Machine coolant
  • Well water treatment
  • Eliminates odors
  • Powerful, safe oxidation and disinfection
  • Reduces or eliminates chemical use
  • Produced on-site (no storage, mixing, or handling of chemicals)
  • Ozone reduces wastewater pollutants

Products

Microzone 100


The Microzone 100 is a compact, corona discharge ozone generator with low power requirements. It is ideal for smaller residential spas and ornamental water features.


Dimensions: 3.10″ h x 3.10″ w x 1.54″ d, .5 lbs.
Ozone Output: 0.1 g/hour @ 3 SCFH on ambient air

Microzone 300P


The Microzone 300P is a corona discharge ozone generator featuring a built-in air compressor and timer, designed to produce ozone under low pressure. Applications include residential spas, ornamental water features, small aquariums, water vending machines, and water store recirculation systems.

Dimensions: 9.75″ h x 5.25″ w x 3.50″ d, 2.25 lbs.
Ozone Output: 0.3 grams/hour @ 6.5 SCFH on ambient air

Pro-400


The Pro-400 ozone recirculation system is used with a wide range of small water treatment applications. The system includes a magnetic drive circulation pump, a venturi injector to provide mass transfer of ozone into the water, a 24-hour programmable timer, and a corona discharge ozone generator.

Dimensions: 20″ h x 12.75″ w x 5″ d, .5 lbs.
Ozone Output: 0.4 grams/hour @ 8 SCFH on ambient air

Microzone CD325


Easy to install and maintain, the Microzone CD325 provides superior ozone water treatment disinfection in a compact size. These powerful, yet small systems require no air prep and are ideal for residential spas, ornamental water features, small aquariums, fresh water holding tanks, well water treatment, and machine coolant applications.

Dimensions: 10w” h x 5.6h” w x 3.70″ d, 5.0 lbs.
Ozone Output: 0.325 grams/hour @ 6 SCFH on ambient air

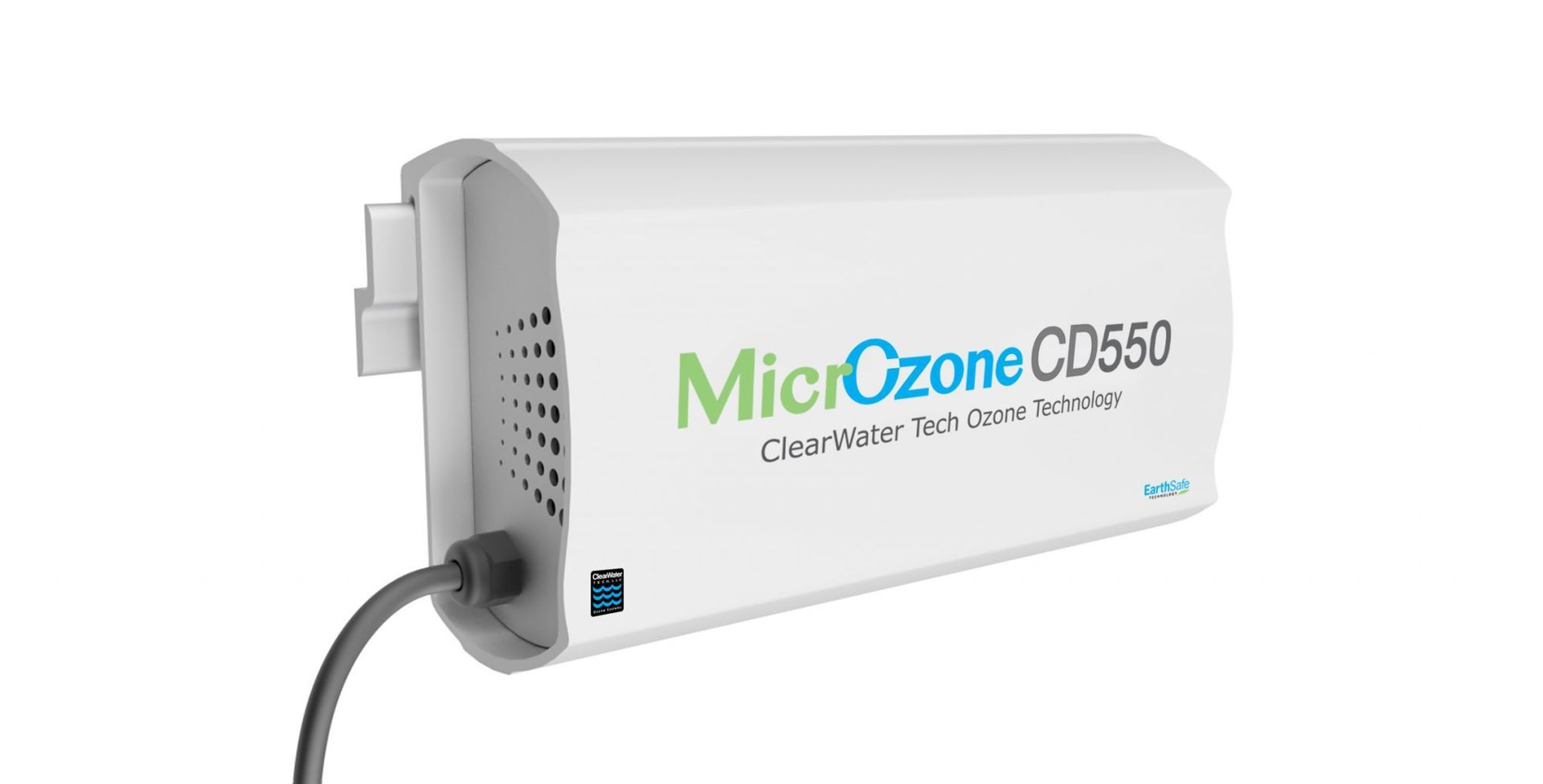

Microzone CD550


The Microzone CD550 provides superior water treatment at an ozone output of 0.55 grams per hour. Easy to maintain and install, the CD550 packs a punch in a compact size.

Dimensions: 10w” w x 5.6h” h x 3.70″ d, 6.0 lbs.
Ozone Output: 0.550 grams/hour @ 6 SCFH on ambient air
