POE Systems

The POE systems from ClearWater Tech are complete, self-contained ozone systems built with the highest quality, heavy-duty components. High ozone output and adjustability allow these systems to accommodate a wide variety of applications.

Features

  • Turnkey and pre-plumbed
  • On-delay timer
  • Booster pump
  • Ozone generator with built-in air dryer
  • Recirculation loop
  • Backflow prevention
  • Powder-coated steel construction
  • Ozone injection system with a contact tank

Applications

  • Residential wells
  • Cannabis grow facilities
  • Cisterns
  • Water stores
  • Small water bottling lines
  • Waste water recycling systems
  • Multi-family & vend laundry facilities

Products

POE10


The POE10 Point-of-Entry skid-mounted system is a complete turnkey ozone contacting system designed to accommodate a wide variety of applications. It comes completely assembled with an ozone generator, built-in air dryer, recirculation pump, injector manifold, back flow prevention vacuum break, contact tank with auto air release vent, and time delay controls.


Applications include residential wells, water stores, small water bottling lines, and wastewater recycling stores.


Dimensions: 68.0″ h x 29.0″ w x 29.0″ d, 200 lbs.
Ozone Output: 1.3 grams/hour @ 4 SCFH

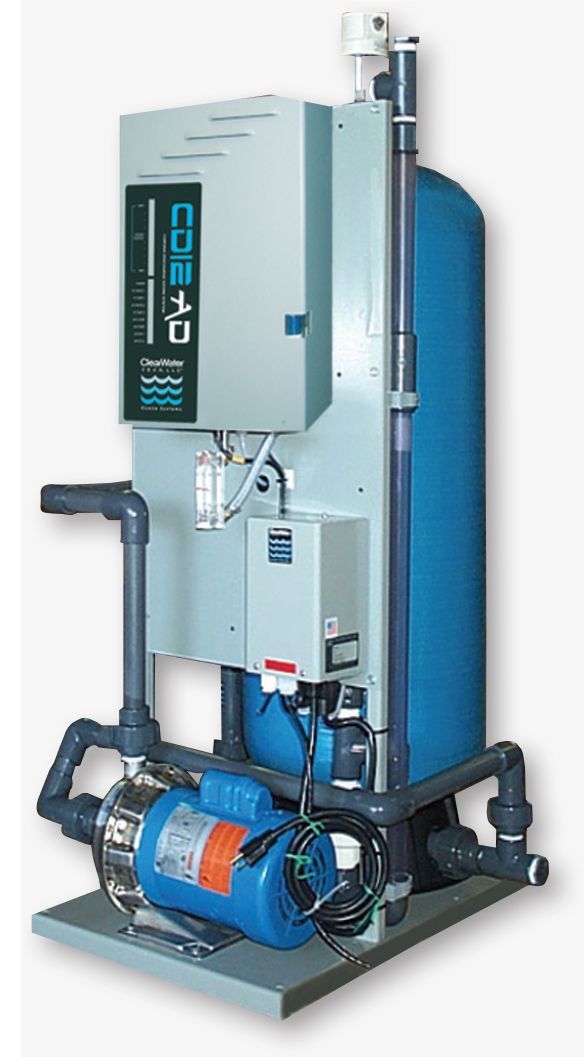

POE12


The POE12 Point-of-Entry skid-mounted system is a complete turnkey ozone contacting system designed to accommodate a wide variety of applications. It comes completely assembled with a CD12/AD ozone generator, built-in air dryer, recirculation pump, injector manifold, backflow prevention vacuum break, contact tank with auto air release vent, and time delay controls.


Applications include residential wells, water stores, small water bottling lines, wastewater recycling stores, and multi-housing laundry facilities.


Dimensions: 68.0″ h x 29.0″ w x 29.0″ d, 200 lbs.
Ozone Output: 2.6 grams/hour @ 8 SCFH

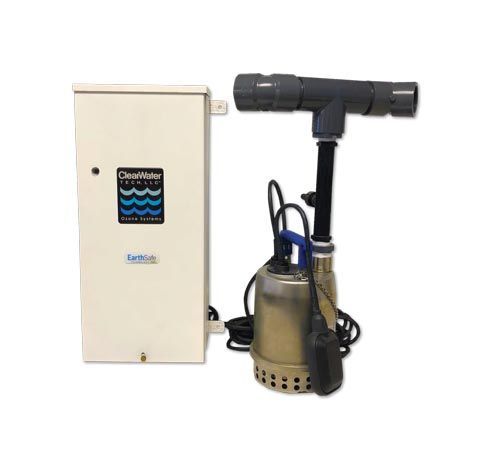

POE-HT


The POE500HT Well Water Holding Tank System offers superior oxidation and disinfection in a compact package. This system is designed for use with a fresh water holding tank to reduce hydrogen-sulfide, iron manganese, microbes, and other contaminants within the water supply.


Applications include fresh water disinfection, well water treatment, and cistern water disinfection


Dimensions: 20.0″ h x 9.0″ w x 4.0″ d, 22.25 lbs.
Ozone Output: 0.5 grams/hour @ 18 SCFH
