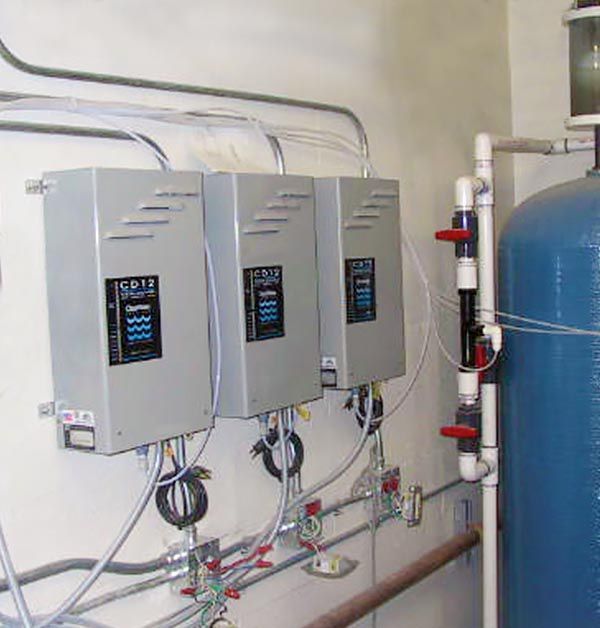

Mini Series

  • Compact, wall-mounted
  • Powder-coated enclosure
  • Air-cooled for ease of installation
  • Solid-state components
  • LED display
  • Remote 4-20 mA control
  • Manual 0-100% ozone output control
  • Available in stainless steel

The Mini-Series produce more ozone using less electrical energy than any other ozone generators available. With features like compact size, fully adjustable ozone output, convenient electrical interface plug, and 4-20mA control circuitry, these units are a perfect combination of versatility, economy, and solid-state reliability.

Features

Applications

  • Residential swimming pools
  • Commercial spas
  • Residential well water
  • Bottled water
  • Wastewater
  • Commercial laundry
  • Water features
  • Aquaculture

Products

CD10


The CD10 is a corona discharge ozone generator engineered with a single reaction chamber and fully adjustable ozone output. Designed to be lightweight, wall-mounted, and easy to install.


Dimensions: 19.0″ h x 9.0″ w x 5.0″ d, 9.5 lbs.
Ozone Output: 1.3 grams/hour @ 4 SCFH on dry air 4 grams/hour @ 4 SCFH on oxygen

CD10/AD


The CD10/AD is one of our most popular corona discharge ozone generators. Engineered with a single reaction chamber, fully adjustable output, and a built-in air dryer.


Dimensions: 19.50″ h x 11.50″ w x 5.0″ d, 14.50 lbs.
Ozone Output: 1.3 grams/hour @ 4 SCFH on dry air

CD12


The CD12 is a corona discharge ozone generator designed with a dual reaction chamber and a fully adjustable ozone output. Compact and versatile, the CD12 can be used for swimming pools, commercial laundry, and aquaculture.

Dimensions: 21.50″ h x 11.50″ w x 5.0″ d, 14.50 lbs.
Ozone Output: 2.6 grams/hour @ 8 SCFH on dry air 8 grams/hour @ 8 SCFH on oxygen

CD12/AD


Nothing in the marketplace compares to this highly reliable corona discharge ozone generator. Designed for product longevity and durability, the CD12/AD features dual ozone reaction chambers with an efficient built-in air-dryer for the highest grams per hour and ozone concentration in a compact, air-cooled, self-contained package.


The CD12/AD includes a regulated universal power supply, and user friendly LED light operational status display. So versatile it can be used in highly technical applications utilizing real-time 4-20mA control or simply operated in manual mode, both controlling ozone output 0-100%.

Dimensions: 19.50″ h x 15.25″ w x 7.50″ d, 34 lbs.
Ozone Output: 2.6 grams/hour @ 8 SCFH on dry air
