Skid Mount

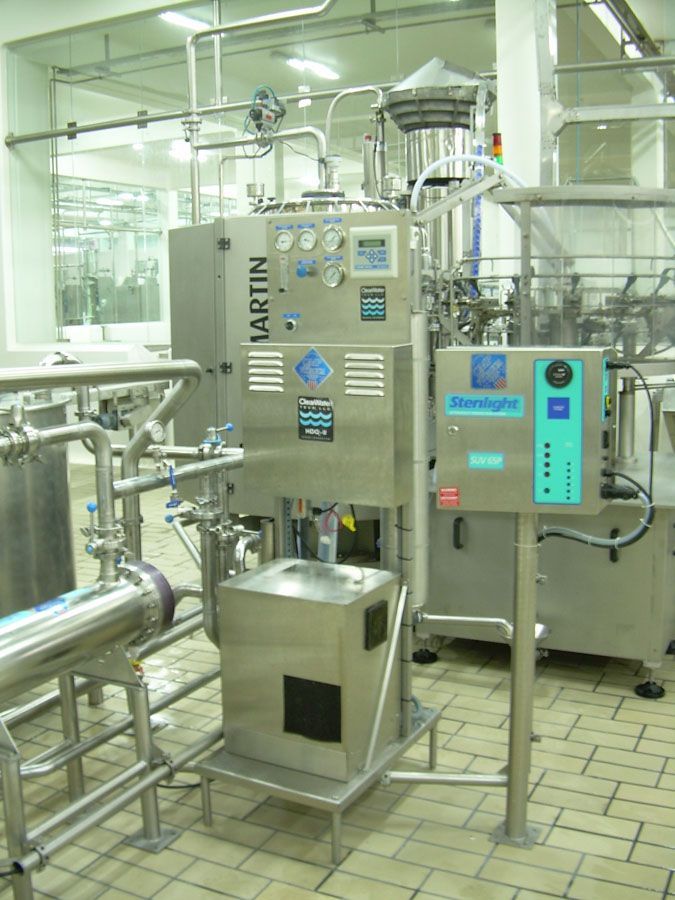

The fully integrated skid-mount systems provide an ozone output range of 1.3 to 20 grams per hour and can handle the toughest water treatment applications. Designed and engineered as complete turnkey solutions, they come pre-wired, pre-plumbed, and are mounted on a powder-coated or stainless steel frame ready for installation.

Features

  • Built-in air preparation
  • Ozone injection system
  • Booster pump
  • Recirculation loop
  • Off-delay timer
  • Backflow prevention
  • Contact tank

NOTE: Features may be optional with some products

Applications

  • Greenhouse
  • Seafood processing
  • Hydroponics
  • Large residential pools
  • Residential well water
  • Commercial pools
  • Bottled water
  • Small community drinking water
  • Agriculture
  • Commercial aquariums
  • Cooling towers
  • Multi-family & vend laundry facilities

Products

CD15/02


The CD15/O2 is an advanced ozone delivery system, engineered to efficiently produce high levels of ozone. Easy to install, the CD15/O2 contains an ozone generator, an air preparation unit, an electrical interlock box, and a booster pump (optional). Together with an ozone injector manifold, this system will take water from a clean water source, re-pressurize it, and inject ozone into the water.

Dimensions: 72.0″ h x 26.0″ w x 29.0″ d, 210 lbs.
Ozone Output: 10.0 grams/hour @ 7 SCFH with oxygen

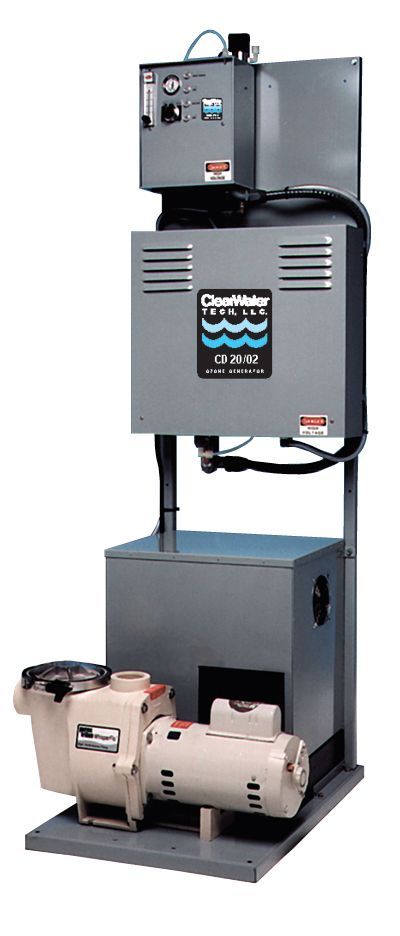

CD20/O2


Designed and engineered for demanding water treatment needs, the CD20/O2 is a turnkey ozone system. It comes pre-wired and pre-plumbed pneumatically, making installation a snap. Perfect for large residential swimming pools, residential well water, bottled water, commercial swimming pools, agri-food, and commercial aquarium applications.

Dimensions: 72.0″ h x 26.0″ w x 29.0″ d, 225 lbs.
Ozone Output: 20.0 grams/hour @ 14 SCFH with oxygen

HDO3


The HDO3 series of clean-in-place water treatment systems represent the pinnacle in ozone mass transfer and efficiency. The HDO3 skids can achieve a higher level of mass transfer of ozone into solution. The integrated PPM controller adjusts the output in real-time for precise applications. This skid has it all: complete wet-end for dissolved ozone delivery, complete oxygen air prep, controls/equipment, and the highest ozone output available.


HDO3-I

Dimensions: 66.0″ h x 20.0″ w x 29.0″ d, 280 lbs.

Ozone Output: 8.0 grams/hour @ 8 SCFH on oxygen


HDO3-II

Dimensions: 66.0″ h x 20.0″ w x 29.0″ d, 300lbs.

Ozone Output: 20.0 grams/hour @ 14 SCFH on oxygen


HDO3-III

Dimensions: 66.0″ h x 20.0″ w x 29.0″ d, 300 lbs.

Ozone Output: 30.0 grams/hour @ 15 SCFH on oxygen
