Laundry Systems

ClearWater Tech offers a family of wall-mounted systems for every sized commercial facility.

The EcoTex Series of ozone systems allows commercial laundry professionals to replace expensive multi-step wash programs that use excessive chemicals and hot water, with a cold-water program that reduces energy consumption, water use, cycle times, drying times, detergent use, chemical use, extends fabric life, and provides a return-on-investment within 8 to 16 months.

Use the power of Ozone (O3) and oxygen (O2) to save money and improve laundry for commercial laundries.

NatureWash

NatureWash provides disinfection for semi-commercial laundries up to 25 lb or 24 kg washers. NatureWash HD1 & HD2 provide disinfection for small commercial laundries that use washers from 25 to 50 lb, or 12 to 24 kg.

EcoTex

EcoTex Advanced Laundry Oxidation Systems provide disinfection for commercial, industrial, and institutional laundry facilities.

EcoTex systems are designed simultaneously to support up to two (2) commercial washers 200 lbs. each. Laundry professionals can replace expensive multi-step wash programs that use chemicals and hot water with cold-water programs that use the power of ozone for disinfection and detergent activation.

EcoTex Packages Include:

• EcoTex ozone generator

• Oxygen concentrator (wall-mount kit available)

• Ambient ozone controller

• EcoTex ozone diffuser

• Installation kit – delivery line, fittings, wall-mount brackets

NOTE: Each EcoTex package can be custom designed to meet your facilities needs

Features

Products

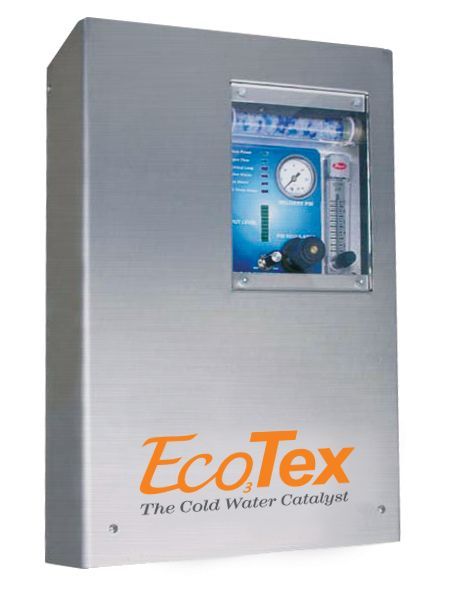

ECO1

The ECO1 is a corona discharge, wall-mounted ozone generator. Designed with a user-friendly diagnostic/control panel, it meets the need of any commercial or institutional laundry facility. Its compact design supports one 35 to 110 lbs. (16 to 50 kg) washer.

Dimensions: 20.50″ H x 12.75″ W x 5.50″ D; 21 lbs.
Ozone Output: 4g/h @ 3% concentration

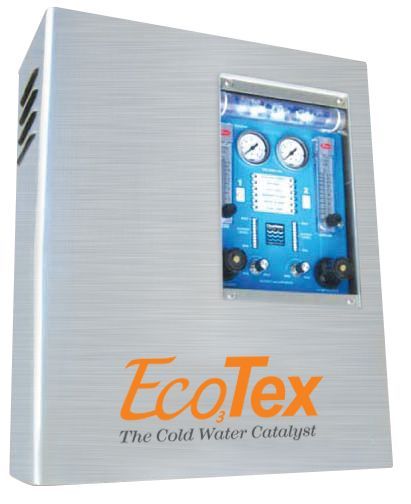

ECO2

The ECO2 wall-mounted ozone generator has an ozone output rating of 8 grams per hour at a 3% concentration by weight. Its stainless steel enclosure and compact design make for easy installation. The expandable design of the EcoTex system allows this ozone generator to support two 35 to 110 lbs. (16 to 50 kg) or one 110 to 200 lb (50 to 90 kg) commercial washer.

Dimensions: 20.50″ H x 16.00″ W x 7.50″ D; 30 lbs.
Ozone Output: 8g/h @ 3% concentration

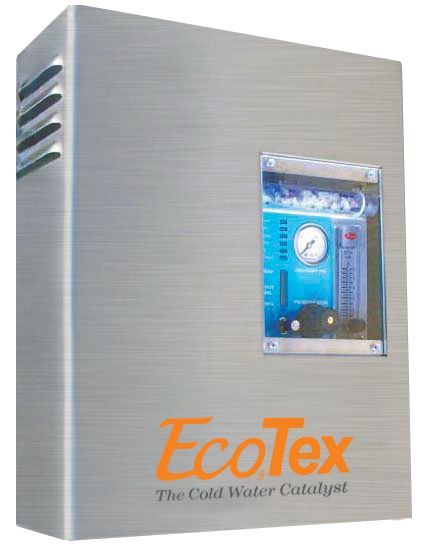

ECO3

The ECO3 is a corona discharge, wall-mounted ozone generator. Designed with a user-friendly diagnostic/control panel, it meets the need of any commercial or institutional laundry facility. Its compact size reduces equipment space, simplifies installation, and saves on maintenance costs. The ECO3 supports one 200 to 400 lb (90 to 180 kg) commercial washer.

Dimensions: 19.50″ H x 15.75″ W x 6.50″ D; 38 lbs.
Ozone Output: 15g/h @ 3% concentration

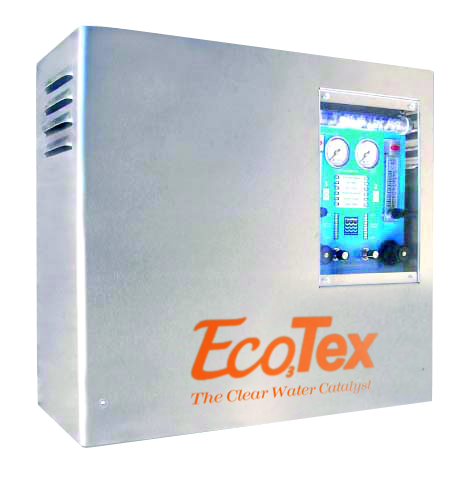

ECO4

The ECO4 CD ozone generator can reduce your laundry facility’s energy consumption using less detergent and hot water. Delivering 27 grams per hour of ozone at 6% concentration, the ECO4 supports two 200 to 400 lb (90 to 180 kg) or one 400 to 920 lb (180 to 417 kg) commercial washers.

Dimensions: 19.50″ H x 20.75″ W x 9.00″ D; 55 lbs.
Ozone Output: 27g/h @ 6% concentration

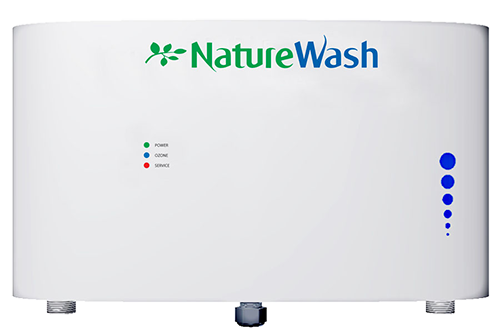

NatureWash

NatureWash is a corona discharge, wall-mounted ozone generator that provides a cold-wash laundry system designed for semi-commercial applications and supports 2 to 25 lb washers.

The NatureWash system reduces energy consumption, water use, and cycle times while extending fabric life. Easy to install, it transforms cold water into a powerful cleaning agent by infusing regular tap water with ozone directly into the wash. With fewer chemicals used, linens come out softer, cleaner, and fresher-smelling.

Dimensions: 10.55″H x 17.12″ W x 5.50″ D; 6 lbs.
Ozone Output: 200 mg/hr

Features

• Aluminum enclosure with white powder-coated finish
• Simple installation
• Inlet/outlet manifold constructed of schedule 40 PVC and Mazzei venturi
• Washer hose type connections on inlet and outlet
• Custom designed PCB to control ozone, indicator lamps, and LEDs
• Flow switch to sense water flow
• Leak detection with audible alarm predetermined hours of operation
• Service light illuminates after predetermined hours of operation

Applications

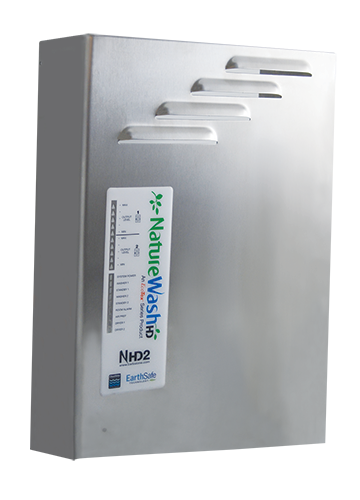

NatureWash HD

NatureWash HD is a corona discharge ozone generator providing water disinfection for small commercial applications that use washers up to 50 lbs. or 24 kgs.

Reducing energy consumption, water use, cycle times, and extending fabric life, the NatureWash HD is easy to install and transforms cold water into a powerful cleaning agent by mixing normal tap water with the power of ozone directly into the wash water.

Dimensions: 19.50” h x 15.50” w x 7.5” d; 34 lbs.
Ozone Output: 1.3 g/h @ 4SCFH - 2.6 g/h @ 8SCFH

Package Includes

• Corona discharge ozone generator
• Internal air prep system
• Injection manifold
• Backflow prevention
• Ambient ozone controller

Applications
