Wall Mounted Series

ClearWater Tech’s range of wall-mounted ozone systems are designed to meet any water treatment challenge. These units deliver the highest ozone output in an air-cooled system, setting the benchmark for performance. No other corona discharge systems offer the same level of sophistication and reliability, while producing more ozone with lower energy consumption.

With fully adjustable ozone output from 0-100% and 4-20mA controls, our wall-mount systems are built with powder-coated or stainless enclosures.

Features

Applications

Products

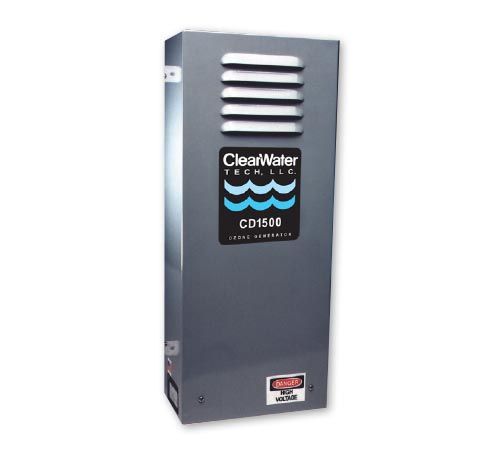

CD1500

The CD1500 wall-mount delivers a high output of ozone on dry air or oxygen for your water treatment demands. Easy to maintain and install, the CD1500 is perfect for swimming pools, commercial spas, problem water, aquariums, bottled water fill lines, water features, and larger volume water stores.

Dimensions: 27.0″ h x 9.25″ w x 5.50″ d, 32 lbs.
Ozone Output: 4.5 grams/hour @ 10 SCFH on dry air or 10 grams/hour @ 7 SCFH on oxygen

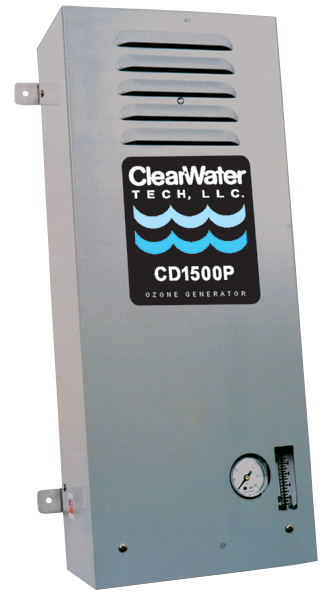

CD1500P

The CD1500P wall-mount from ClearWater Tech is a pressurized, corona discharge ozone generator with a single reaction chamber. Delivering high ozone output, it operates at 10 PSI cell pressure with a built-in pressure gauge and flow meter. Applications include wastewater, commercial spas, residential swimming pools, residential problem water, and water features.

Dimensions: 27.0″ h x 9.25″ w x 5.50″ d, 32 lbs.
Ozone Output: 15 grams/hour @ 6 SCFH on oxygen

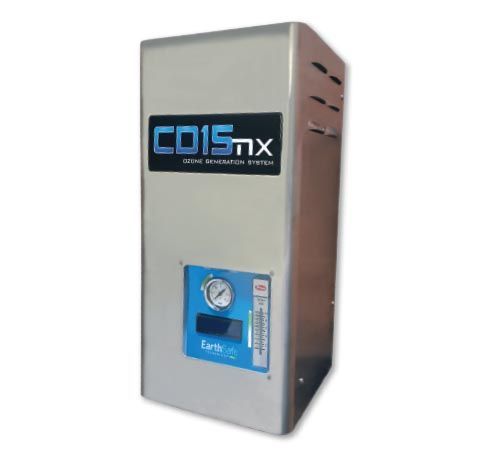

CD15nx

The CD15nx is the most advanced ozone generator available today. Designed with the industries first System Information and Diagnostics (S.I.D.) LCD display, it provides a seamless user interface to control and monitor ozone production and system diagnostics.

The CD15nx allows for universal power input and produces 15 grams per hour at five percent concentration by weight (5%), with oxygen feed gas. The new drive circuitry utilizes a self-resonating technology that allows the system to automatically adjust for pressure, flow, and other potential current variations to optimize ozone output and the system’s electronic stability.

Features

Applications

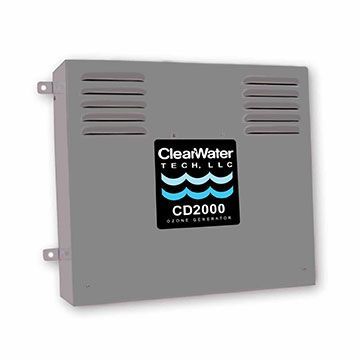

CD2000

The CD2000 is a compact, corona discharge ozone system providing increased electrical efficiency and the most modern features available.

It is equipped with multi-voltage power, input selector switch, remote and manual 0-100% ozone output control, and is built to handle tough water treatment and sanitation applications.

Dimensions: 23.0″ h x 20.25″ w x 5.50″ d, 49 lbs.
Ozone Output: 9.0 grams/hour @ 20 SCFH on dry air, 20 grams/hour @ 14 SCFH on oxygen

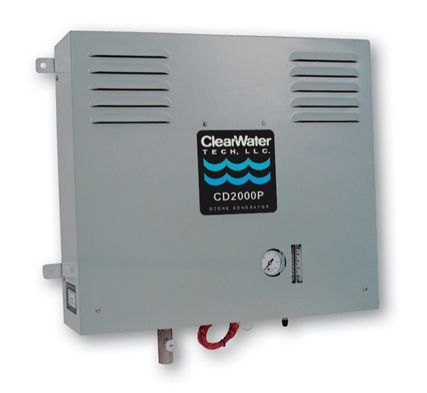

CD2000P

The CD2000P is a pressurized, corona discharge ozone generator with a dual reaction chamber design. Delivering high ozone output, it operates at 10 PSI cell pressure with a built-in pressure gauge and flow meter.

Perfect for wastewater, commercial spas, residential swimming pools, residential problem water, and water feature applications.

Dimensions: 23.0″ h x 20.25″ w x 5.50″ d, 49 lbs.
Ozone Output: 27 grams/hour @ 12 SCFH on oxygen

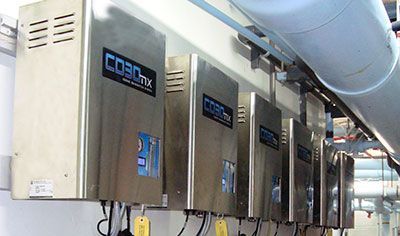

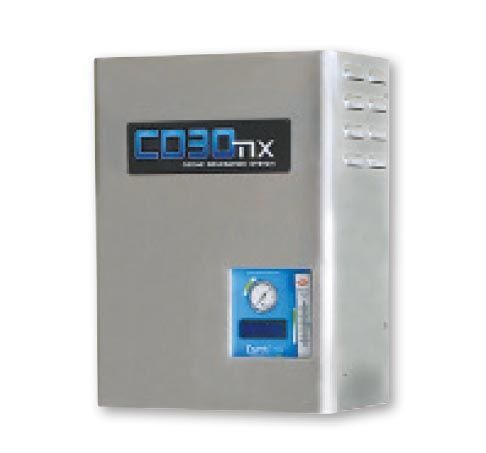

CD30nx

The CD30nx is a compact, wall-mounted ozone system that can be displayed in various languages. It is designed with the industry’s first onboard system information and diagnostics LCD display, which provides a seamless user interface to control and monitor ozone production and system diagnostics.

The CD30nx allows for universal power input and produces 30 grams per hour at five percent concentration by weight (5%) with oxygen feed gas.

Features

Features
