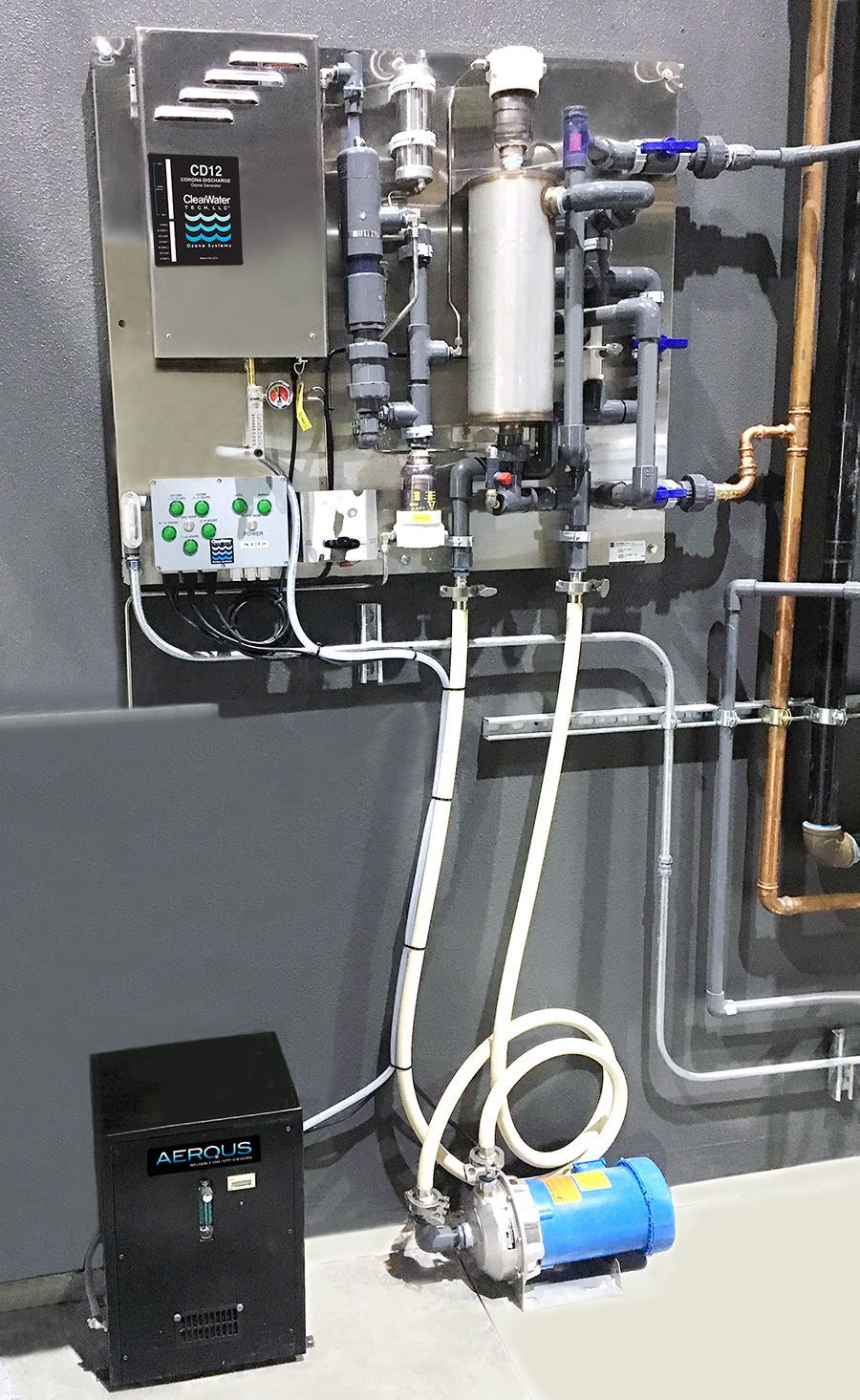

Clean In Place Panel-Mount

The Clean-In-Place Panel Mount (CIPPM) ozone systems provide complete ozone delivery in an all-in-one wall-mounted package. We have eliminated the need for onsite design, engineering, and the bulk of the installation process. The CIP-PM Series is completely assembled with the only requirements needed are a power source, oxygen concentrator, booster pump, and water connections to be made.


Dissolved ozonated water can be plumbed to multiple points-of-use throughout the facility providing water treatment for wineries, breweries, cideries, cannabis grow facilities, agri-food, dairy and many other surface disinfection applications.


Compact and wall-mounted, the CIP-PM packages come with an ozone generator, ozone injection and contacting, ozone degassing and destruction, and a circulation loop to provide constant flow and pressure to the point-of-use.

Features

  • Ozone generation
  • Electrical controls/auto circulation loop timer
  • Injection and contacting
  • Ozone degassing and destruction
  • Circulation loop
  • Optional: Ozone and oxygen gassing (not available with CIP-PM260)

Benefits

  • Reduces chemical and hot water use
  • Produced on-site (no storage, mixing, or handling of chemicals)
  • Leaves no harmful by-products
  • Ozone is approved by the FDA & USDA for food contact

Applications

  • Wineries, breweries, hard cider
  • Cannabis grow facilities
  • Surface sanitation
  • Seafood cases
  • Butcher blocks
  • Food processing
  • Fishing vessels
  • Produce misters
  • Fish storage
  • Process water purification
  • Dairy cases
  • Odor control
  • Floors & walls

Products

CIP260PM


The CIP260PM system provides complete ozone delivery in one, easily installed, compact, wall-mounted package. It can be plumbed to multiple points-of-use in your facility for superior surface water disinfection.

Ozone Output: 2.6 grams/hour @ 1% by weight

Features

  • Ozone generation
  • Electrical controls/auto circulation loop timer
  • Injection and contacting
  • Ozone degassing and destruction
  • Circulation loop

CIP800PM


The CIP800-PM system is a compact, wall-mounted package that includes an on-board circulation loop that delivers a constant flow and pressure of ozonated water within your facility. Designed for ease of installation, the CIP800-PM only requires power and water connections, along with the connection of the floor-mounted oxygen concentrator, and circulation pump.


Ozone Output: 8 grams/hour @ 3% by weight

Features

  • Ozone generation
  • Electrical controls/auto circulation loop timer
  • Injection and contacting
  • Ozone degassing and destruction
  • Circulation loop
  • Optional: Ozone and oxygen gassing

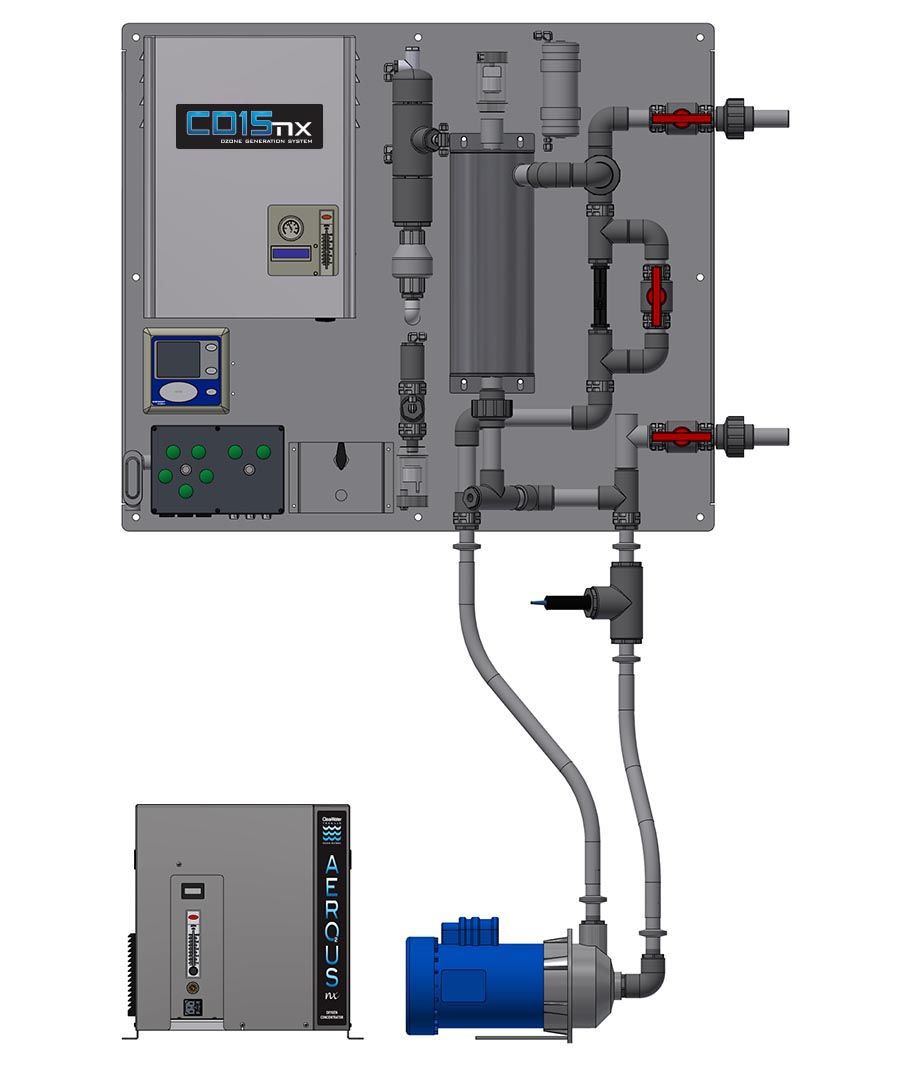

CIP1500PM


The CIP1500-PM ozone system delivers dissolved ozonated water for clean-in-place applications. Easily wall-mounted, this compact package includes an on-board circulation loop to deliver a constant flow and pressure of ozonated water within your facility.

Ozone Output: 15 grams/hour @ 5% by weight

Features

  • Ozone generation
  • Electrical controls/auto circulation loop timer
  • Injection and contacting
  • Ozone degassing and destruction
  • Circulation loop
  • Optional: Ozone and oxygen gassing

CIP3000PM


Designed for ease of installation, the CIP3000-PM only requires power and water connections, along with connection of the floor mounted oxygen concentrator, and circulation pump to deliver dissolved ozonated water for clean-in-place applications. Compact, and wall-mounted, the CIP3000-PM includes an on-board circulation loop to deliver a constant flow and pressure of ozonated water within the facility.

Ozone Output: 30 grams/hour @ 5% by weight

Features

  • Ozone generation
  • Electrical controls/auto circulation loop timer
  • Injection and contacting
  • Ozone degassing and destruction
  • Circulation loop
  • Optional: Ozone and oxygen gassing
